Key Feature
- Chipset - Intel H81
- Sockets Supported - LGA1150
- Supported CPU - 4th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors
- Generation - 4th
- Memory Slot - 2
- emory Max. - 16GB
- Stock: In Stock
- Model: Asus H81M-K
| Key Features | |
| Form Factor | Micro-ATX |
| Connectivity | |
| HDMI | Not available |
| Basic Information | |
| Supported CPU | Intel 4th Generation Core i7/i5/i3, Pentium, and Celeron processors (LGA1150 socket) |
| Chipset | Intel H81 chipset |
| Memory | 2 x DIMM slots Supports up to 16GB DDR3 memory Speeds up to 1600 MHz |
| Memory | |
| Slots | 1 x PCIe 2.0 x16 slot 2 x PCIe 2.0 x1 slots |
| Maximum Memory | 16GB DDR3 |
| General information | |
| DVI | 1 x DVI-D port |
| Graphics | Integrated GPU support via CPU Outputs: 1 x DVI-D port 1 x VGA port |
| Memory Type | DDR3 |
| Supported Storage | 2 x SATA III 6.0 Gb/s ports 2 x SATA II 3.0 Gb/s ports |
| Main Features | |
| Audio | 8-Channel HD Audio Realtek ALC887 audio codec |
| External Features | |
| Expansion Slots | 1 x PCIe 2.0 x16 slot 2 x PCIe 2.0 x1 slots |
| Connector & Ports | |
| LAN Port (s) | 1 x Realtek Gigabit LAN (10/100/1000 Mb/s) |
| RAID | RAID is not supported |
| Internal I/O Ports | 1 x USB 3.0 header 1 x USB 2.0 header 4 x SATA ports Front Panel Header CPU Fan Header Chassis Fan Header |
| TPM (Trusted Platform Module ) | Not available |
| Physical Specification | |
| USB | Rear I/O: 2 x USB 3.0 ports 4 x USB 2.0 ports Internal: 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports) |
| Warranty Information | |
| Warranty | 3 years |

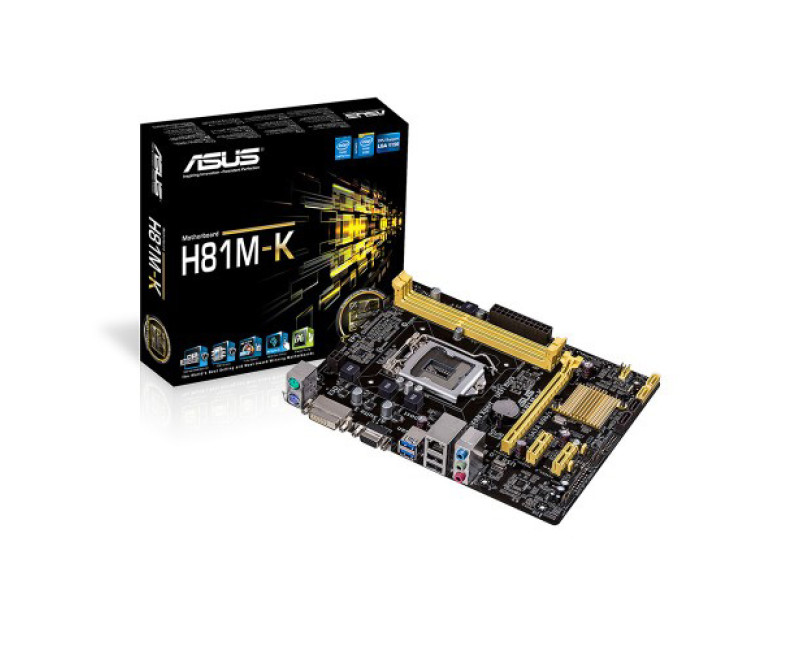

Asus H81M-K Motherboard in Bangladesh
The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. The Asus H81M-K comes with 3 years of warranty.
