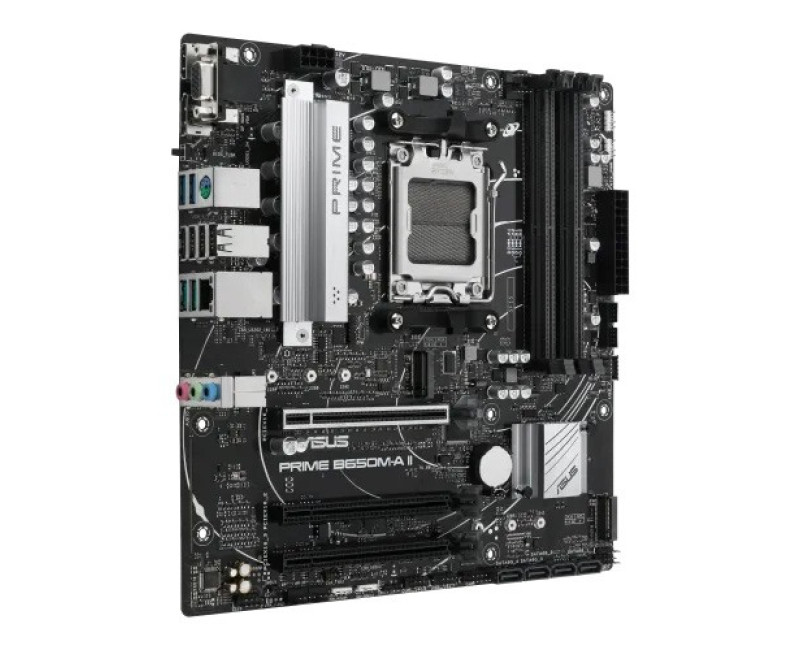

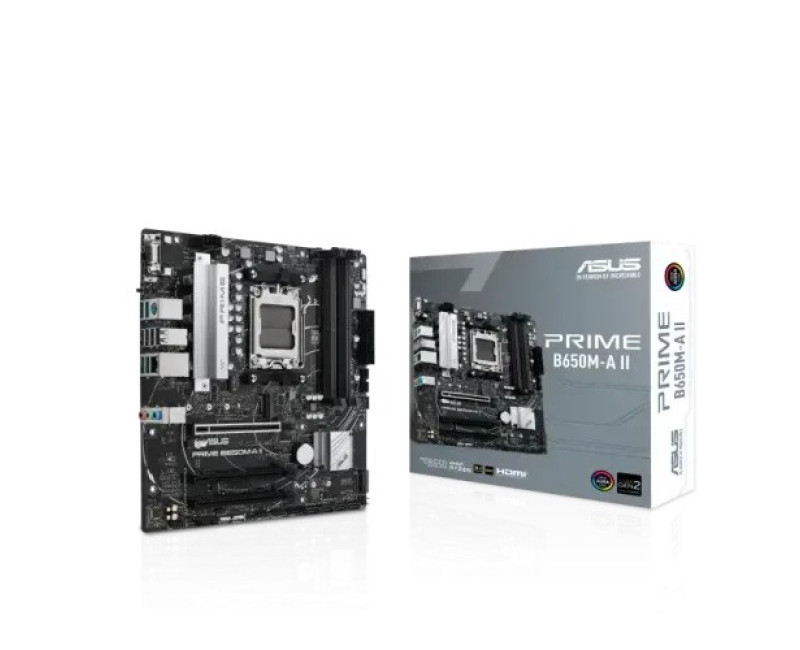

Asus PRIME B650M-A II AM5 mATX Motherboard

Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard
-7 %
Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard
Asus PRIME B650M-A II AM5 mATX Motherboard

Key Feature

  • Model: PRIME B650M-A II
  • Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 192GB, 7600+(OC)
  • Features: Realtek 2.5Gb Ethernet
  • Stock: In Stock
  • Brand: ASUS
  • Model: Asus PRIME B650M-A II
18,400৳
19,790৳
Ex Tax: 18,400৳
***It is requested to know about the stock and delivery of the product before ordering।*
Key Features
Form Factor Micro-ATX
Connectivity
HDMI 1 x HDMI port
Basic Information
Supported CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset AMD B650 chipset
Memory 4 x DIMM slots, supporting up to 128GB DDR5 memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Memory
Slots 1 x PCIe 4.0 x16 slot (supports x16 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Maximum Memory 96GB DDR5
General information
DVI Not available
Graphics 1 x DisplayPort
1 x VGA port
1 x HDMI® port
Memory Type DDR5
Supported Storage 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Main Features
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
External Features
Expansion Slots 1 x PCIe 4.0 x16 slot (supports x16 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Connector & Ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet port
RAID Not specified
Internal I/O Ports 1 x 8-pin +12V Power connector
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
3 x Addressable Gen 2 headers
1 x Aura RGB header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
Physical Specification

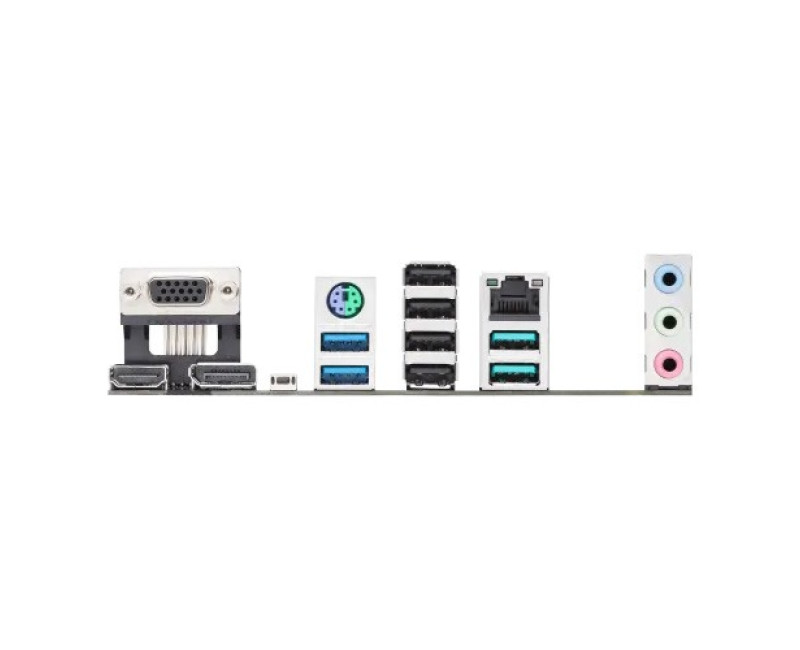

USB Rear I/O Ports:
2 x USB 3.2 Gen 2 ports (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
Internal I/O Ports:
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
Warranty Information
Warranty 3 years

Asus PRIME B650M-A II Motherboard in Bangladesh

The Asus PRIME B650M-A II AM5 mATX Motherboard represents the pinnacle of modern micro-ATX motherboard design, engineered to cater to the needs of high-performance computing and the latest AI technologies. At its core, the motherboard features the AM5 socket, which is compatible with the latest AMD Ryzen desktop processors, offering a robust and future-ready foundation for powerful computing. The integration of DDR5 memory support ensures that users can take advantage of the latest advancements in memory technology, while the inclusion of M.2 PCIe 5.0 slots provides ultra-fast storage options for rapid data access and improved overall system performance. Connectivity is a key strength of this motherboard. It boasts Realtek 2.5Gb Ethernet, which delivers exceptional network speeds and reliability, making it ideal for both high-speed internet connections and demanding network tasks. In addition, the motherboard features USB 3.2 Gen 2 ports and front USB 3.2 Gen 1 Type-C, offering versatile and high-speed connectivity options for a wide range of peripherals and devices. To enhance memory performance, the ASUS OptiMem II technology is implemented, which involves meticulous routing of memory traces and vias along with ground layer optimizations. This design improves signal integrity and allows for better memory overclocking capabilities, providing users with greater flexibility and performance tuning. Thermal management is another critical aspect addressed by the PRIME B650M-A II. The motherboard includes dedicated VRM and PCH heatsinks to ensure effective cooling and stability, even during intensive workloads. It features hybrid fan headers and the Fan Xpert 2+ utility, allowing for precise and customizable cooling solutions to maintain optimal temperatures. The Asus PRIME B650M-A II does not disappoint. It comes equipped with Aura Sync RGB lighting, featuring Addressable Gen 2 headers and an Aura RGB header. This enables users to easily synchronize and customize RGB LED strips with other Aura Sync-capable hardware, creating a visually stunning and personalized system build. The Asus PRIME B650M-A II AM5 mATX Motherboard combines cutting-edge technology, superior connectivity, and advanced cooling solutions, making it an excellent choice for users looking to build a high-performance, future-proof PC capable of handling the latest demands in computing and AI applications.
