| Key Features | |
| Form Factor | Micro-ATX |
| Connectivity | |
| HDMI | 1 x HDMI port |
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B650 chipset |
| Memory | 2 x DIMM slots Supports up to 96GB DDR5 memory |
| Memory | |
| Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 3.0 x1 slots |
| Maximum Memory | 96GB DDR5 |
| General information | |
| DVI | Not available |
| Graphics | Integrated graphics support via CPU 1 x HDMI port |
| Memory Type | DDR5 |
| Supported Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Main Features | |
| Audio | 3 x Audio jacks Supports 7.1-Channel HD Audio |
| External Features | |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 3.0 x1 slots |
| Connector & Ports | |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port |
| RAID | RAID is not supported |
| Internal I/O Ports | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x USB 3.2 Gen1 header (supports 2 additional USB 3.2 Gen1 ports) 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| Physical Specification | |

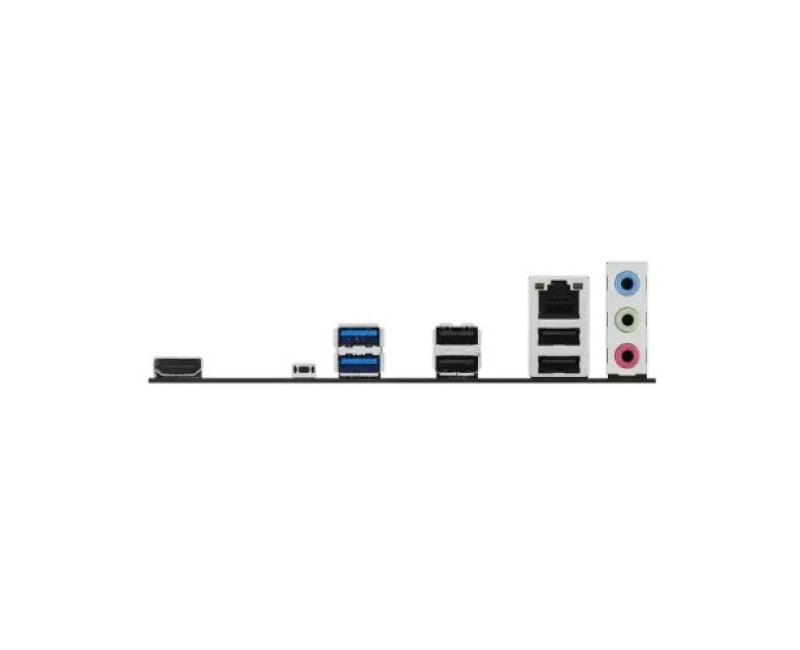

| USB | Rear I/O Ports: 4 x USB 3.2 Gen1 Type-A ports 2 x USB 2.0 ports (Type-A) Internal I/O Ports: 1 x USB 3.2 Gen1 header (supports 2 additional USB 3.2 Gen1 ports) 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) |
| Warranty Information | |
| Warranty | 3 years |

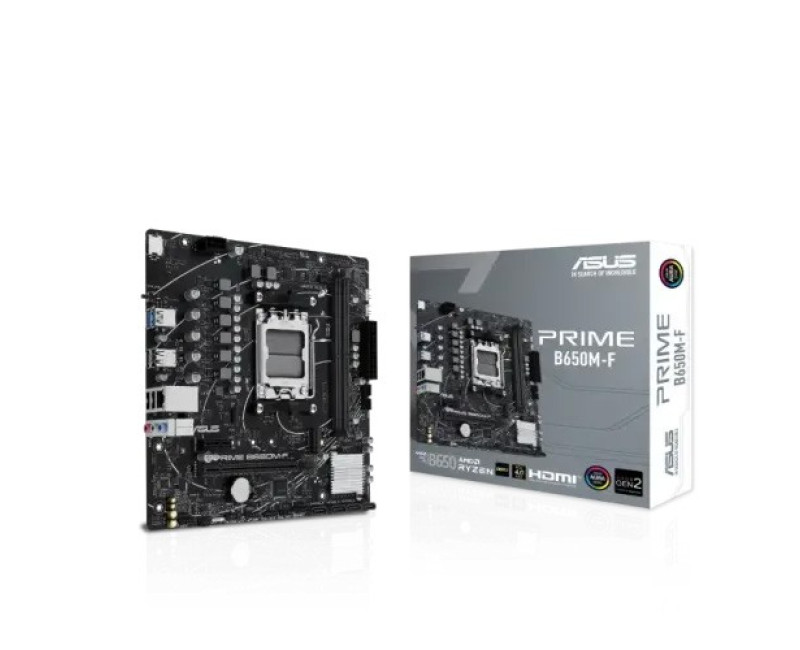

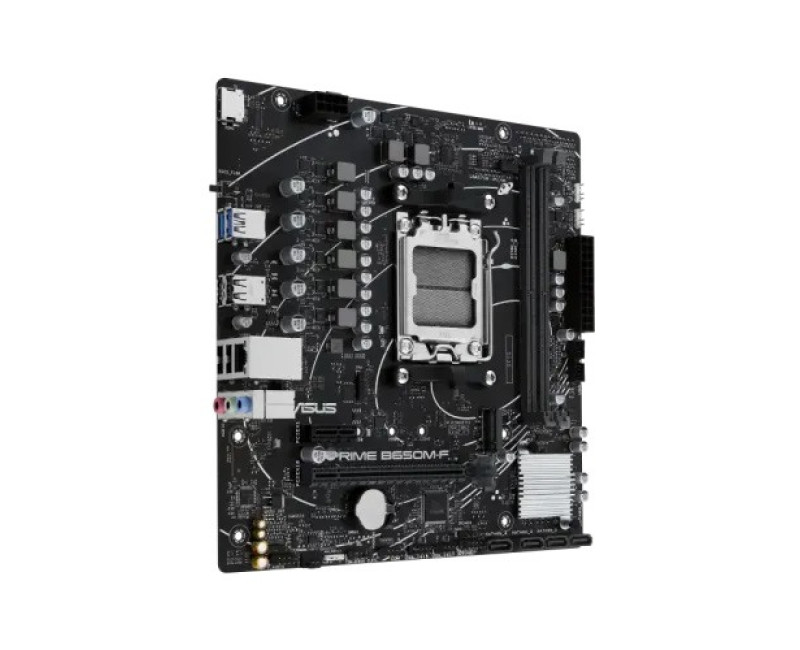

The ASUS PRIME B650M-F AM5 mATX motherboard is designed for users seeking high performance with cutting-edge technology. Built on the AMD B650 chipset, it supports the latest AMD Ryzen™ 7000 and 8000 Series Desktop Processors, offering powerful computing for gamers, creators, and professionals. This micro-ATX motherboard embraces the future with support for DDR5 memory, PCIe 4.0, and a 64Gbps M.2 slot, providing ultrafast data transfer and enhanced connectivity. The Realtek 1Gb Ethernet and USB 5Gbps Type-A ports further enhance network and peripheral performance. To ensure optimal performance under demanding conditions, the motherboard features comprehensive cooling solutions, including a PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for dynamic thermal management. For users interested in aesthetics, the onboard Aura Sync RGB Lighting allows synchronization of RGB LED strips with other Aura Sync-capable devices, enabling a fully customizable lighting experience. The motherboard is equipped with Two-Way AI Noise cancellation, which reduces background noise during communication, making it ideal for gaming or video conferences. The inclusion of BIOS FlashBack allows for easy and safe firmware updates, ensuring the system is always up-to-date and running smoothly. The ASUS PRIME B650M-F is an excellent choice for building a modern, high-performance PC ready for advanced AI applications and intensive tasks.
