| Key Features | |
| Form Factor | Micro-ATX |
| Connectivity | |
| HDMI | 1 x HDMI® port |
| Basic Information | |
| Supported CPU | 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Chipset | Intel® B760 |
| Memory | 2 x DIMM slots Supports up to 96GB DDR5 memory |
| Memory | |
| Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 4.0 x1 slots |
| Maximum Memory | 96GB DDR5 |
| General information | |
| DVI | Not available |
| Graphics | 1 x VGA port 1 x HDMI™ port |
| Memory Type | DDR5 |
| Supported Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Main Features | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
| External Features | |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 4.0 x1 slots |
| Connector & Ports | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet port |
| RAID | Not specified |
| Internal I/O Ports | 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Physical Specification | |

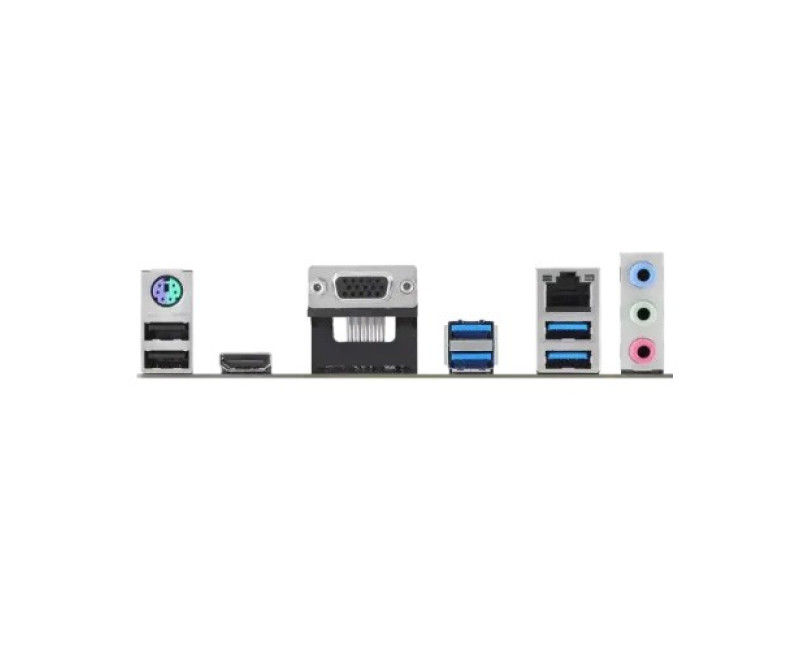

| USB | Rear I/O Ports: 4 x USB 3.2 Gen 1 ports (Type-A) 2 x USB 2.0 ports (Type-A) Internal I/O Ports: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 3 additional USB 2.0 ports) |
| Warranty Information | |
| Warranty | 3 years |

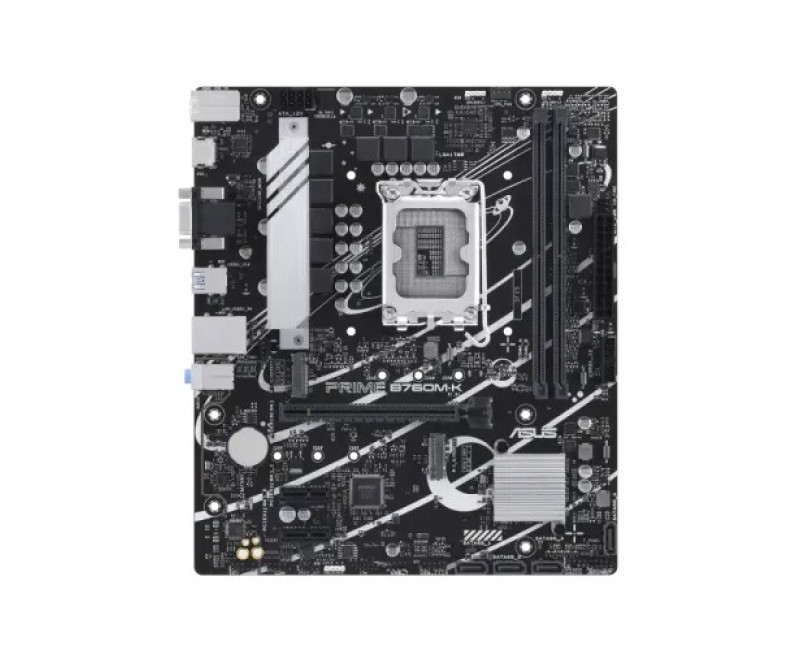

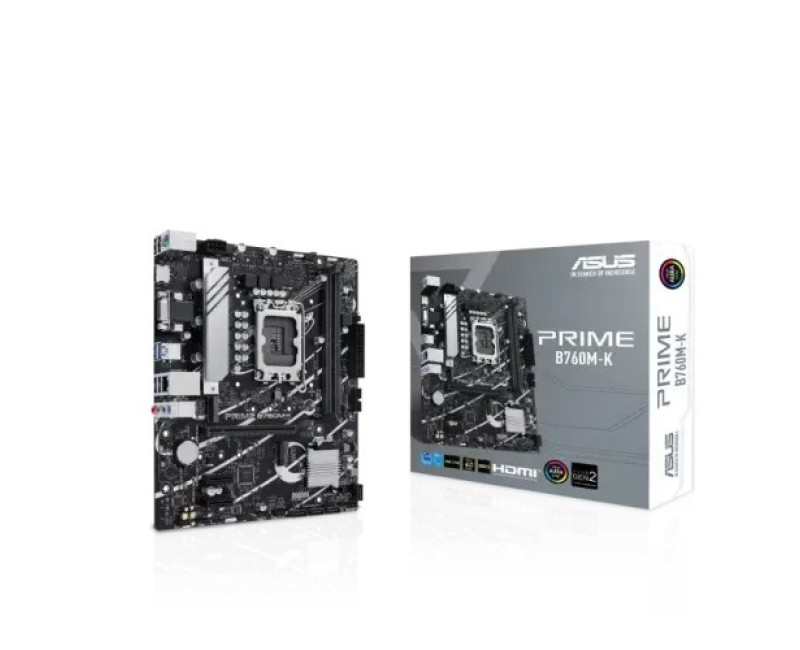

The Asus PRIME B760M-K 14th 13th & 12th Gen mATX Motherboard is a cutting-edge motherboard designed for high-performance computing. With support for Intel's latest 14th, 13th and 12th Gen processors and an LGA 1700 socket, this motherboard is ready to power your gaming rig or workstation with unparalleled speed and efficiency. One of the standout features of this motherboard is its ultrafast connectivity options. With PCIe 4.0 support, two M.2 slots for lightning-fast storage, Realtek 2.5Gb Ethernet for high-speed networking, and Wi-Fi 6 for wireless connectivity, you can expect blazing-fast data transfer speeds and lag-free online gaming. The 14th Gen Motherboard also boasts a comprehensive cooling solution, featuring VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology. This ensures that your system stays cool even during intense gaming sessions or heavy workloads, allowing for optimal performance and stability. To enhance memory overclocking capabilities, this motherboard features ASUS OptiMem II technology, which carefully routes traces and vias and optimizes ground layers to preserve signal integrity. This results in improved memory overclocking potential, allowing you to push your system to its limits. This Asus PRIME B760M-K comes with Aura Sync RGB lighting, allowing you to customize the aesthetics of your build with onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips. These can be easily synced with other Aura Sync-capable hardware for a cohesive and synchronized RGB lighting setup. This motherboard offers rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports, providing versatile and high-speed connectivity options for peripherals and devices. the Asus PRIME B760M-K 12th & 13th Gen mATX Motherboard is a feature-rich and powerful motherboard that provides excellent performance, connectivity, and cooling capabilities for your PC build. Whether you're a gamer, content creator, or professional, this motherboard is designed to meet your high-performance computing needs. With its support for Intel's latest processors, PCIe 4.0, M.2 storage, Realtek 2.5Gb Ethernet, Wi-Fi 6, Aura Sync RGB lighting, and comprehensive cooling solution, it's a top choice for those seeking a high-quality motherboard for their next PC build.
