| Key Features | |
| Form Factor | Micro-ATX |
| Connectivity | |
| HDMI | 1 x HDMI™ port |
| Basic Information | |
| Supported CPU | Ryzen 8000 / 7000 Series |
| Chipset | AMD A620 chipset |
| Memory | 4 x DIMM slots, supporting up to 128GB DDR5 memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) |
| Memory | |
| Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 3.0 x1 slots |
| Maximum Memory | 128GB DDR5 |
| General information | |
| DVI | Not available |
| Graphics | 2 x DisplayPort 1 x HDMI™ port |
| Memory Type | DDR5 |
| Supported Storage | 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
| Main Features | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
| External Features | |
| Expansion Slots | 1 x PCIe 4.0 x16 slot 2 x PCIe 3.0 x1 slots |
| Connector & Ports | |
| LAN Port (s) | Supports RAID 0, 1, 10 |
| RAID | RAID is not supported |
| Internal I/O Ports | 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers 3 x Addressable Gen 2 headers 1 x Aura RGB header |
| TPM (Trusted Platform Module ) | Not specified |
| Physical Specification | |

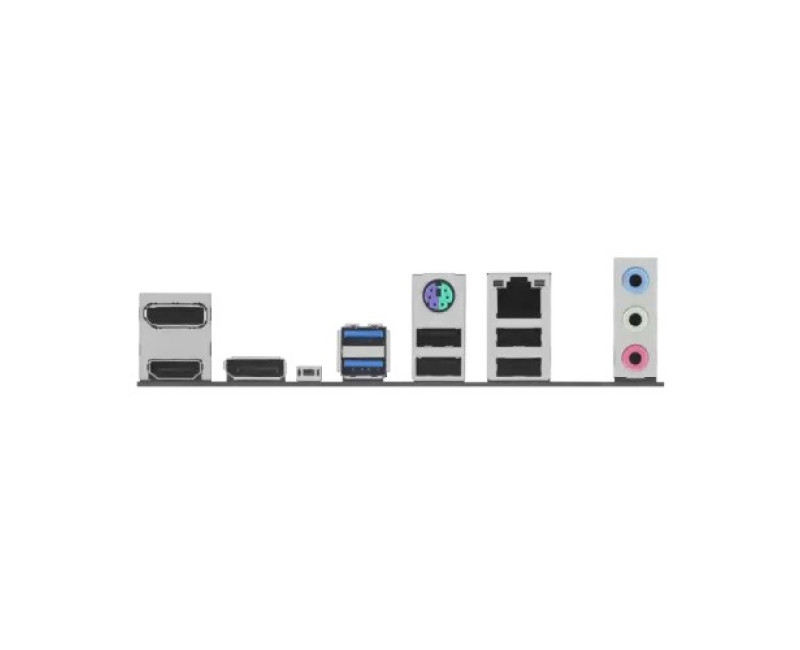

| USB | Rear I/O Ports: 2 x USB 3.2 Gen 1 ports (Type-A) 4 x USB 2.0 ports (Type-A) Internal I/O Ports: 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Warranty Information | |
| Warranty | 3 years |

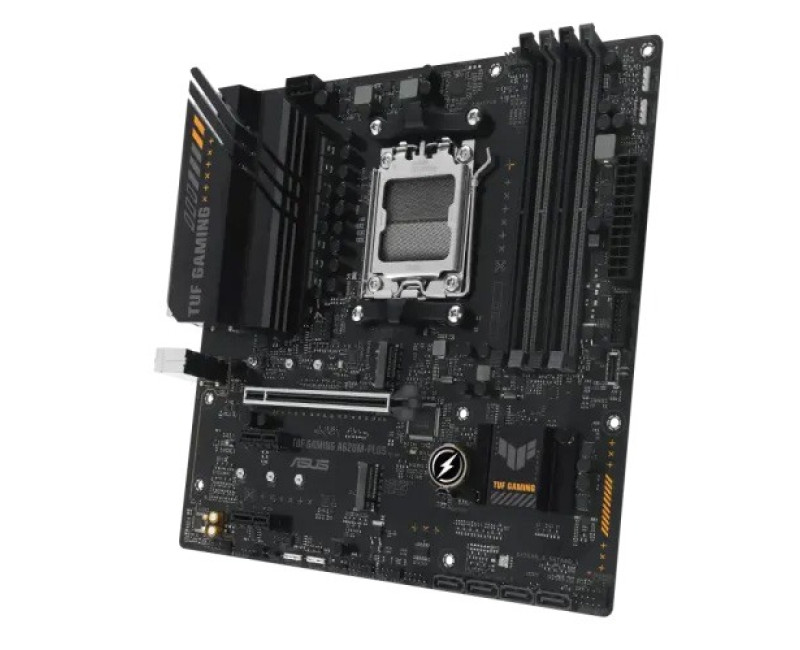

The ASUS TUF GAMING A620M-PLUS is a Micro-ATX motherboard designed for gaming. It supports the AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors. The motherboard features the AMD A620 chipset and supports up to 128GB of DDR5 memory with speeds up to 6400MHz (OC). It has dual-channel memory architecture and supports AMD Extended Profiles for overclocking. The graphics capabilities include 2 x DisplayPort and 1 x HDMI ports, with support for high-resolution displays up to 8K at 60Hz and 4K at 60Hz respectively. The expansion slots consist of 1 x PCIe 4.0 x16 slot for the CPU and 2 x PCIe 3.0 x1 slots for additional expansion cards. For storage, it has 2 x M.2 slots (supporting PCIe 4.0 x4 mode) and 4 x SATA 6Gb/s ports. The ASUS TUF GAMING A620M-PLUS Motherboard also features 1 x Realtek 2.5Gb Ethernet, USB 3.2 Gen 1 and USB 2.0 ports, Realtek 7.1 Surround Sound High Definition Audio CODEC, and various internal I/O connectors for fans, power, storage, and USB. It comes with ASUS TUF PROTECTION features for enhanced durability, ASUS Q-Design for easy installation and maintenance, and ASUS Thermal Solution for efficient cooling. The ASUS TUF GAMING A620M-PLUS Motherboard supports ASUS-exclusive software such as Armoury Crate and AI Suite 3 for system optimization and control. It is compatible with Windows 11 and Windows 10 64-bit operating systems.
