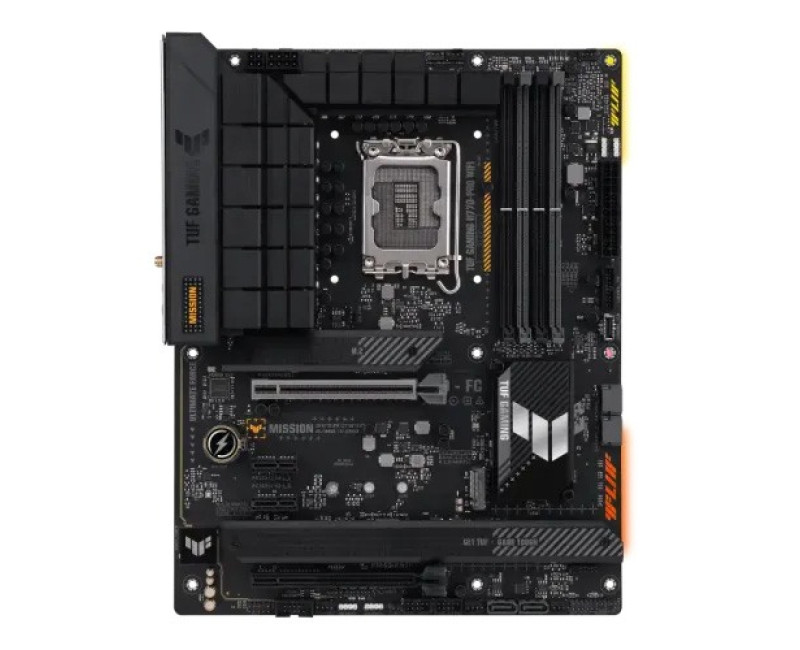

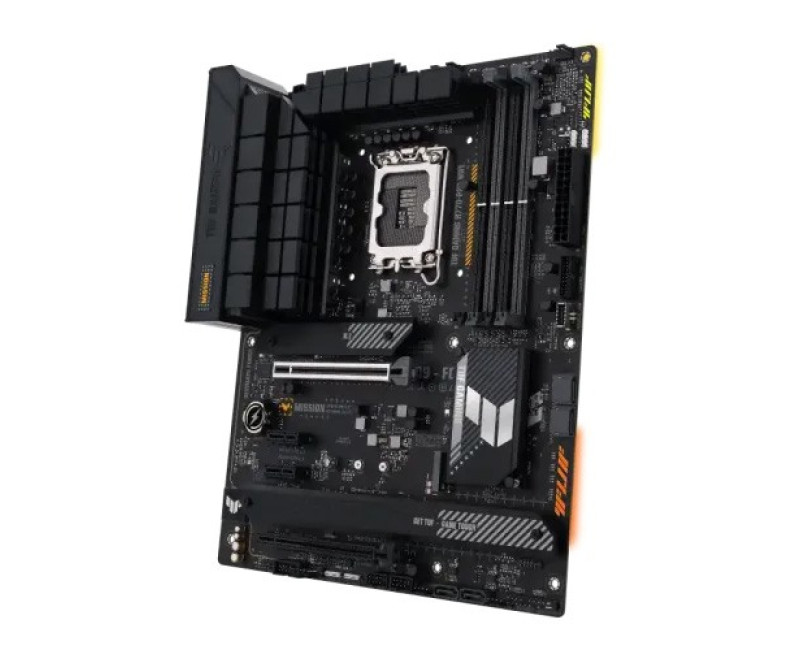

ASUS TUF GAMING H770-PRO WIFI ATX Motherboard

ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
-9 %
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard
ASUS TUF GAMING H770-PRO WIFI ATX Motherboard

Key Feature

  • Model: TUF GAMING H770-PRO WIFI
  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)
  • Features: Wi-Fi 6 and Intel 2.5Gb Ethernet
  • Stock: In Stock
  • Brand: ASUS
  • Model: ASUS TUF GAMING H770-PRO
34,500৳
38,000৳
Ex Tax: 34,500৳
***It is requested to know about the stock and delivery of the product before ordering।*
Key Features
Form Factor ATX
Connectivity
HDMI 1 x HDMI® port
Basic Information
Supported CPU 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset Intel® H770
Memory 4 x DIMM slots, supporting up to 128GB DDR5 memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Memory
Slots 1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Maximum Memory 128GB DDR5
General information
DVI Not available
Graphics 1 x DisplayPort
1 x HDMI® port
Memory Type DDR5
Supported Storage 4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Main Features
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
External Features
Expansion Slots 1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Connector & Ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet port
RAID Supports RAID 0, 1, 5, 10
Internal I/O Ports 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis Intrude function
1 x Thunderbolt™ (USB4®) heade
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Physical Specification

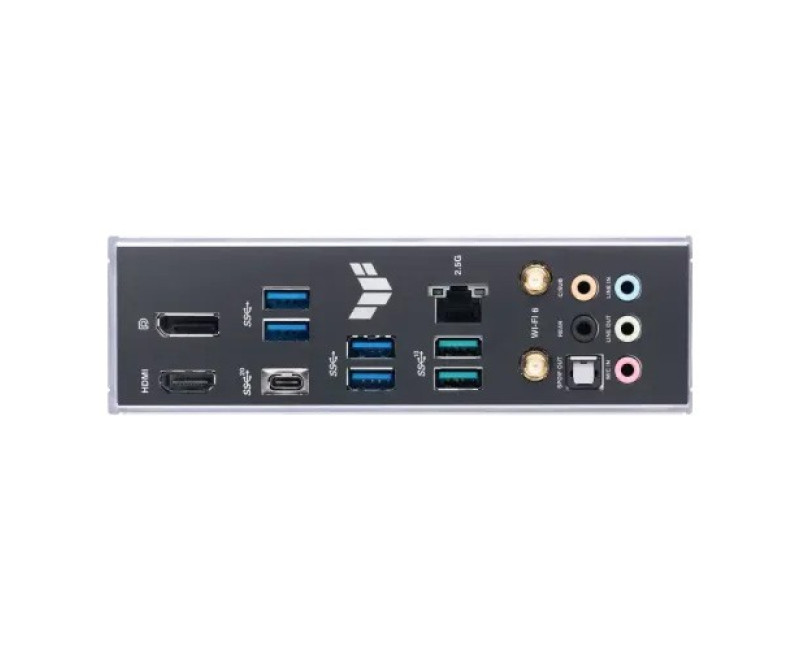

USB Rear I/O Ports:
1 x USB 3.2 Gen 2x2 port (Type-C®)
2 x USB 3.2 Gen 2 ports (Type-A)
4 x USB 3.2 Gen 1 ports (Type-A)
Internal I/O Ports:
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
2 x USB 2.0 headers (support 4 additional USB 2.0 ports)
Warranty Information
Warranty 3 years

ASUS TUF GAMING H770-PRO Motherboard in Bangladesh

The ASUS TUF GAMING H770-PRO WIFI ATX Motherboard comes with Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors. This motherboard has 14+1 DrMOS power stages with enlarged VRM heatsinks, PCIe 5.0 support for graphics cards, compatibility with DDR5 memory modules, and USB 3.2 Gen 2x2 Type-C at the rear I/O panel. It also includes Intel 2.5 Gb Ethernet, WiFi 6, and Two-Way AI Noise Cancelation for enhanced connectivity and audio quality. Its I/O panel features HDMI, DisplayPort, USB ports, Intel 2.5Gb Ethernet, Wi-Fi 6, and 7.1-ch Audio. The motherboard's power design includes features like DrMOS power stages, a multi-layer PCB, ProCool Power Connectors, and Digi+ VRM for efficient and stable power delivery. It also supports PCIe 4.0 M.2 slots, allowing for high-speed data transfer. The motherboard offers comprehensive fan controls via Fan Xpert 4 utility and comes with enlarged VRM heatsinks to improve thermal performance. The motherboard features WiFi 6, Intel 2.5 Gb Ethernet, AI Noise Cancelation, and high-quality audio. The onboard RGB lighting can be synced with compatible gear to create a personalized gaming atmosphere.
