| Key Features | |
| Form Factor | ATX |
| Connectivity | |
| HDMI | 1 x HDMI™ port |
| Basic Information | |
| Supported CPU | AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Chipset | AMD X870 |
| Memory | 4 x DIMM slots, supporting up to 192GB DDR5 memory Dual Channel Memory Architecture Supports AMD EXPO™ (Extended Profiles for Overclocking) |
| Memory | |
| Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots |
| Maximum Memory | 192GB DDR5 |
| General information | |
| DVI | Not available |
| Graphics | 1 x HDMI™ port |
| Memory Type | DDR5 |
| Supported Storage | 4 x M.2 slots (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4, 1 x PCIe 3.0 x4) 2 x SATA 6Gb/s ports |
| Main Features | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
| External Features | |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 slots |
| Connector & Ports | |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet port |
| RAID | Supports RAID 0, 1, 10 for NVMe storage devices |
| Internal I/O Ports | 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Physical Specification | |

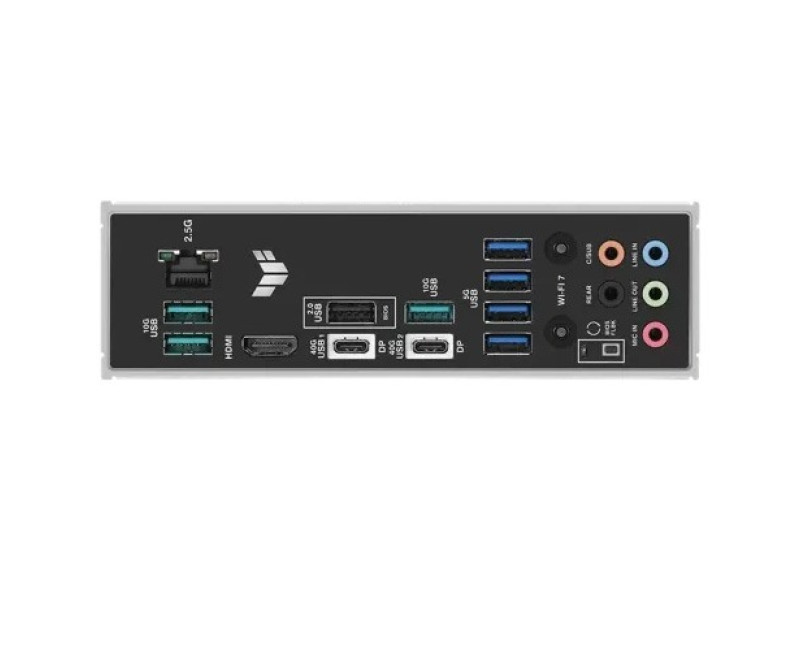

| USB | Rear I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Internal I/O Ports: 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports) 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) |
| Warranty Information | |
| Warranty | 3 years |

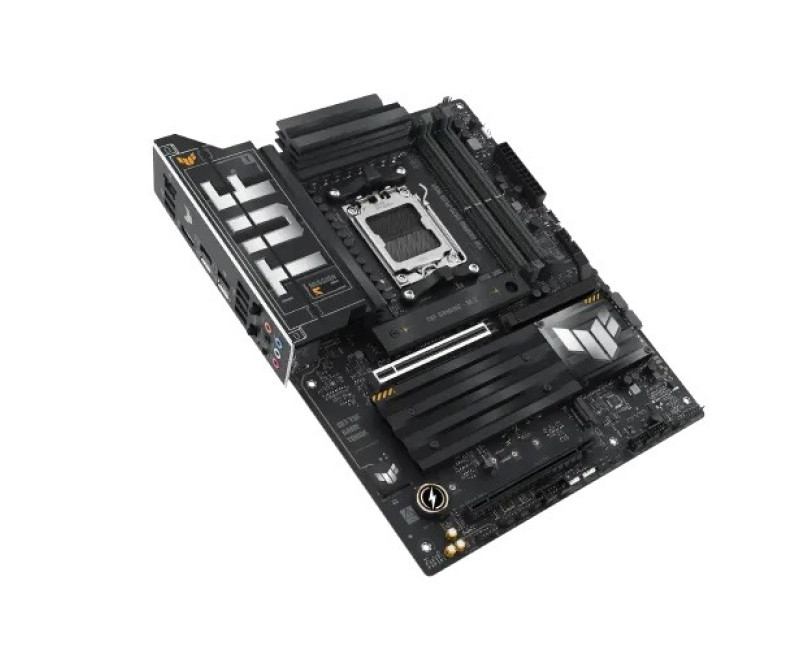

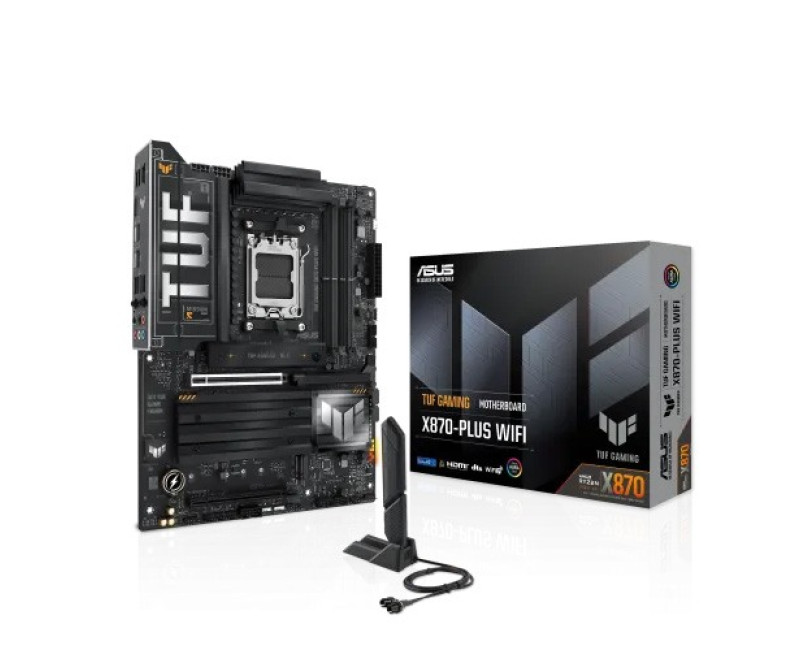

The Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard is engineered to deliver exceptional performance and durability, making it an ideal choice for gamers and PC builders who demand reliability. Designed to support AMD Ryzen 9000, 8000, and 7000 series processors, this motherboard features the AMD X870 chipset and AM5 socket, ensuring compatibility with the latest high-performance CPUs. It supports up to 192GB of DDR5 RAM with speeds up to 8000+ MT/s (OC), providing the speed and capacity needed for intensive gaming and multitasking. Storage options are extensive, with four M.2 slots and two SATA 6Gb/s ports, ensuring ample space for all your data needs. Connectivity is seamless with dual USB4 40Gbps Type-C ports, WiFi 7, and PCIe 5.0 slots, offering ultra-fast data transfer and connectivity. The motherboard's advanced cooling solutions, including enlarged VRM heatsinks, M.2 heatsinks, and multiple fan headers, ensure optimal performance even under heavy loads. Expansion is flexible with one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot, catering to various expansion requirements. Additionally, it supports 4K@60Hz graphics via HDMI 2.1 and DisplayPort 1.4a, delivering stunning visuals for an immersive experience. Customizable Aura Sync RGB lighting allows you to personalize your build with a wide range of colors and effects. Built with military-grade components and subjected to rigorous endurance testing, the Asus TUF GAMING X870-PLUS WIFI DDR5 AM5 ATX Motherboard guarantees long-lasting durability and stability, making it a dependable choice for marathon gaming sessions and intensive computing tasks. With advanced AI overclocking, AI cooling, and AI networking features, this motherboard ensures your system runs at peak performance with minimal effort, providing the stability, speed, and customization options needed to build a high-performance PC.
