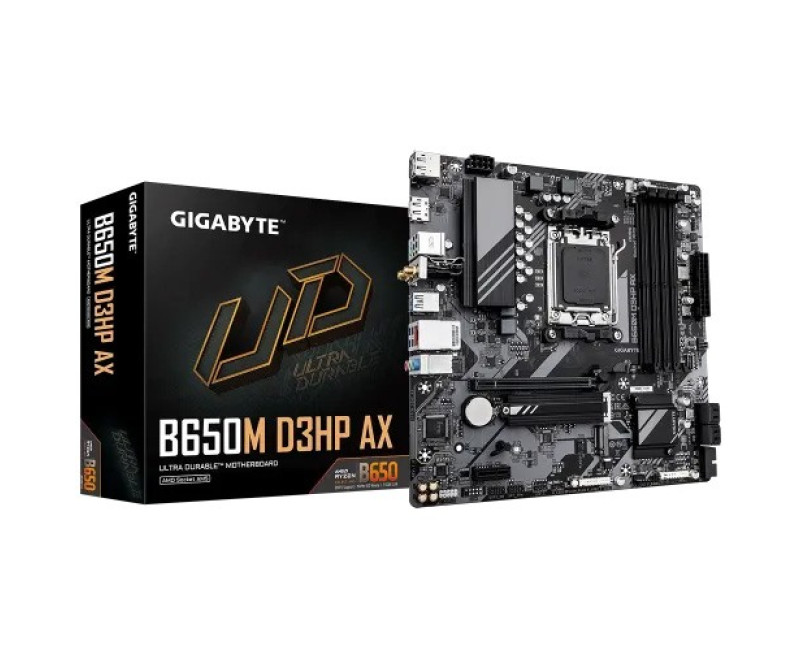

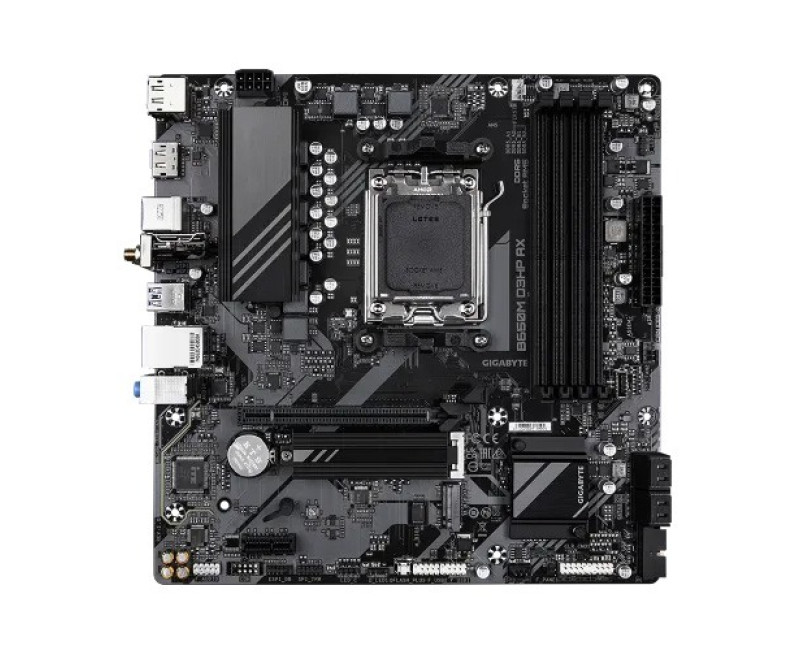

Name: GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard
Brand: GIGABYTE
Price: 20800.00 BDT
Availability: InStock

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

-21 %

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard

Key Feature

Model: B650M D3HP AX
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 192GB, 7600(OC)
Features: Realtek 2.5GbE LAN & Realtek Wi-Fi 6E RTL8852CE

Stock: In Stock
Brand: GIGABYTE
Model: GIGABYTE B650M D3HP AX

Based on 0 reviews. - Write a review

20,800৳

26,470৳

Ex Tax: 20,800৳

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

***It is requested to know about the stock and delivery of the product before ordering।*

Key Features
Form Factor	Micro-ATX
Connectivity
HDMI	1 x HDMI port
Basic Information
Supported CPU	AMD Socket AM5: Supports AMD Ryzen™ 7000, 8000, and 9000 Series Processors
Chipset	AMD B650
Memory	4 x DDR5 DIMM sockets supporting up to 192GB of system memory Dual Channel Memory Architecture Support for AMD EXPO™ and Intel® XMP memory modules
Memory
Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum Memory	192GB
General information
DVI	Not available
Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Memory Type	DDR5
Supported Storage	2 x M.2 connectors: M2A_CPU: Supports PCIe 4.0 x4/x2 SSDs M2C_SB: Supports PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, access the audio software for settings.
External Features
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x1 slot
Connector & Ports
LAN Port (s)	1 x 2.5GbE LAN port
RAID	Support for RAID 0, RAID 1, and RAID 10 for NVMe SSD storage devices Support for RAID 0, RAID 1, and RAID 10 for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Physical Specification

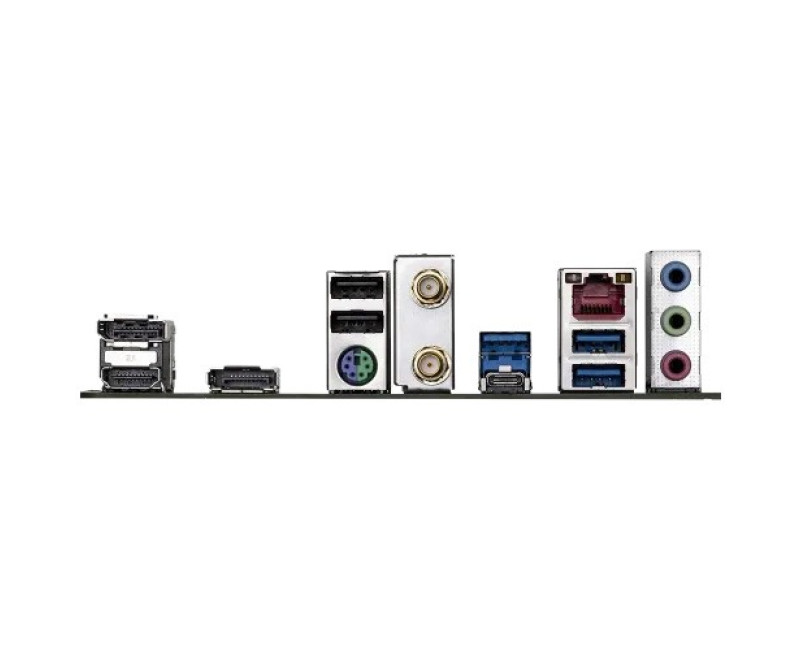

USB	Rear Panel: 1 x USB Type-C® port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Internal: 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
Warranty Information
Warranty	3 years

GIGABYTE B650M D3HP AX DDR5 AM5 Motherboard in Bangladesh

The GIGABYTE B650M D3HP AX DDR5 AM5 Micro-ATX Motherboard is a powerful and versatile choice for modern PC builds. Designed for AMD Ryzen 7000 series processors, it features the AMD B650 chipset and AM5 socket for exceptional performance and compatibility. With DDR5 memory support, this motherboard ensures faster speeds, efficient multitasking, and enhanced gaming experiences.

Equipped with PCIe 4.0 slots and dual M.2 connectors, the motherboard delivers high-speed connectivity and reliable storage solutions. It also includes WiFi 6E and Bluetooth 5.2 for seamless wireless networking and device connectivity. USB 3.2 Gen 2, HDMI, and DisplayPort provide versatile options for peripherals and multi-display setups. Built with advanced cooling technology and durable components, the GIGABYTE B650M D3HP AX ensures stable and efficient operation even under demanding workloads. Its compact Micro-ATX form factor makes it ideal for high-performance, space-saving PC builds, perfect for gaming, productivity, or professional use.
