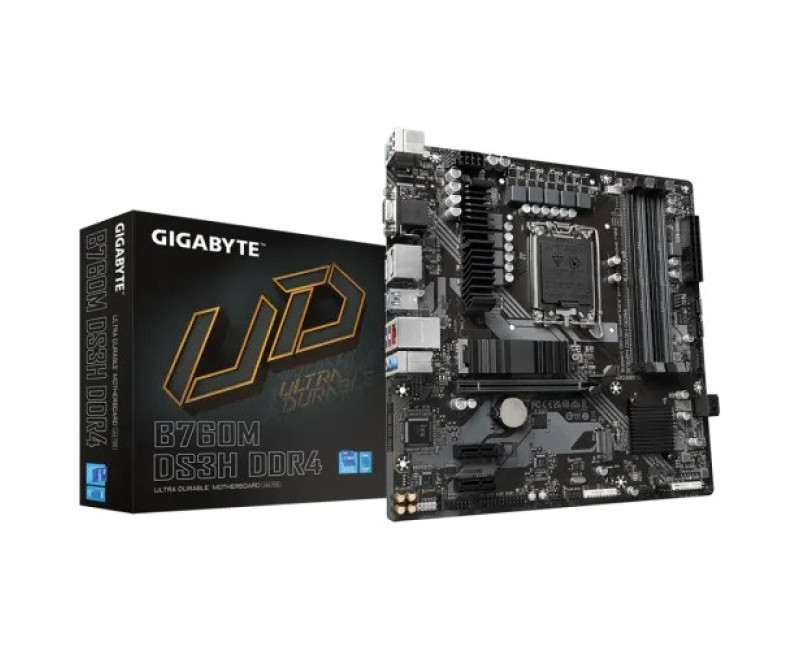

Name: GIGABYTE B760M DS3H DDR4 mATX Motherboard
Brand: GIGABYTE
Price: 16800.00 BDT
Availability: InStock

GIGABYTE B760M DS3H DDR4 mATX Motherboard

-8 %

GIGABYTE B760M DS3H DDR4 mATX Motherboard

Key Feature

Model: B760M DS3H DDR4
Supported CPU: 14th/ 13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Features: Realtek 2.5GbE LAN chip

Stock: In Stock
Brand: GIGABYTE
Model: GIGABYTE B760M DS3H

Based on 0 reviews. - Write a review

16,800৳

18,230৳

Ex Tax: 16,800৳

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

***It is requested to know about the stock and delivery of the product before ordering।*

Key Features
Form Factor	Micro-ATX
Connectivity
HDMI	1 x HDMI port
Basic Information
Supported CPU	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors Compatible with LGA1700 socket processors.
Chipset	Intel® B760 Express Chipset
Memory	4 x DDR4 DIMM sockets supporting up to 128GB of system memory Dual Channel Memory Architecture Support for DDR4 5333 (O.C.) / 5133 (O.C.) / 5000 (O.C.) / 4933 (O.C.) / 4800 (O.C.) / 4700 (O.C.) / 4600 (O.C.) / 4500 (O.C.) / 4400 (O.C.) / 4300 (O.C.) / 4266 (O.C.) / 4133 (O.C.) / 4000 (O.C.) / 3866 (O.C.) / 3800 (O.C.) / 3733 (O.C.) / 3666 (O.C.) / 3600 (O.C.) / 3466 (O.C.) / 3400 (O.C.) / 3333 (O.C.) / 3300 (O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz memory modules Support for Extreme Memory Profile (XMP) memory modules
Memory
Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4
Maximum Memory	128GB
General information
DVI	Not available
Graphics	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Memory Type	DDR4
Supported Storage	2 x M.2 connectors: M2A_CPU: Supports PCIe 4.0 x4/x2 SSDs M2P_SB: Supports PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, access the audio software for settings.
External Features
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x16 slot
Connector & Ports
LAN Port (s)	1 x Realtek® 2.5GbE LAN port
RAID	Support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Physical Specification

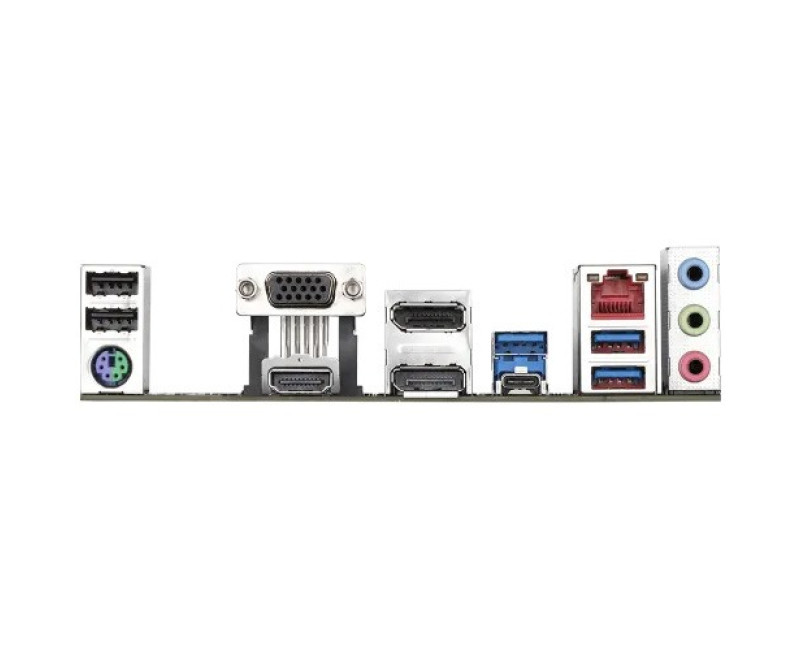

USB	Rear Panel: 1 x USB Type-C® port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Internal: 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
Warranty Information
Warranty	3 years

GIGABYTE B760M DS3H DDR4 mATX Motherboard in Bangladesh

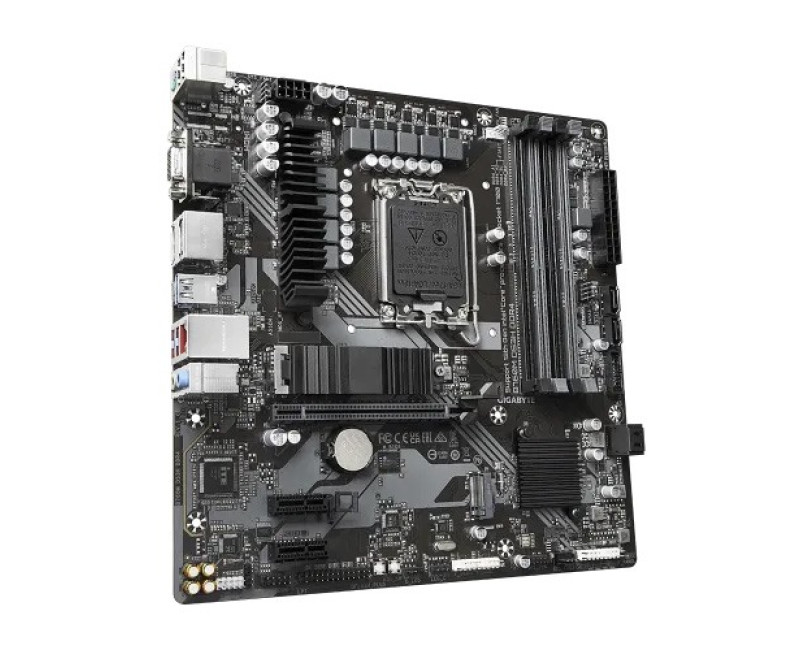

The GIGABYTE B760M DS3H DDR4 Micro-ATX Motherboard is a versatile and high-performance motherboard designed for Intel 12th and 13th Gen processors. With the Intel B760 chipset and LGA 1700 socket, it delivers exceptional compatibility and performance for gaming, productivity, and daily computing. The motherboard supports DDR4 memory, ensuring fast speeds and efficient multitasking.

Featuring PCIe 4.0 and dual M.2 slots, this motherboard provides fast storage solutions and seamless connectivity. It also includes USB 3.2 Gen 2, HDMI, and DisplayPort for versatile display and peripheral options. With advanced cooling technology and durable components, the B760M DS3H ensures reliable performance under heavy workloads. Its Micro-ATX form factor makes it perfect for compact PC builds without compromising on features, making it ideal for gamers and professionals alike.
