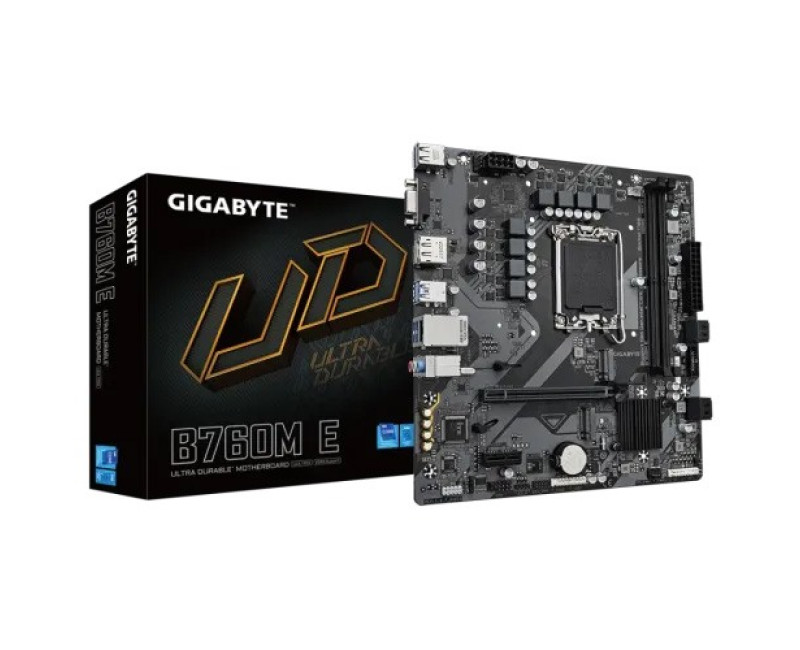

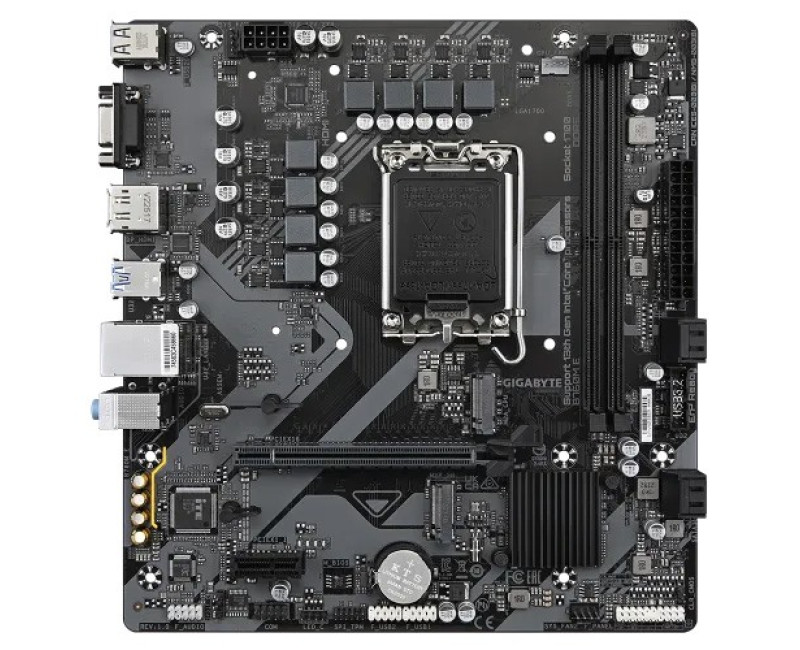

Name: GIGABYTE B760M E DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 15000.00 BDT
Availability: InStock

GIGABYTE B760M E DDR5 Micro ATX Motherboard

-9 %

GIGABYTE B760M E DDR5 Micro ATX Motherboard

Key Feature

Model: B760M E
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 128GB 7200(OC)
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Stock: In Stock
Brand: GIGABYTE
Model: GIGABYTE B760M E

Based on 0 reviews. - Write a review

15,000৳

16,500৳

Ex Tax: 15,000৳

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

***It is requested to know about the stock and delivery of the product before ordering।*

Key Features
Form Factor	Micro-ATX
Connectivity
HDMI	1 x HDMI port
Basic Information
Supported CPU	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors Compatible with LGA1700 socket processors.
Chipset	Intel® B760 Express Chipset
Memory	2 x DDR5 DIMM sockets supporting up to 96GB of system memory Dual Channel Memory Architecture Support for DDR5 8000 (O.C.) /7800 (O.C.) /7600 (O.C.) /7400 (O.C.) /7200 (O.C.) /7000 (O.C.) /6800 (O.C.) /6600 (O.C.) /6400 (O.C.) /6200 (O.C.) /6000 (O.C.) /5800 (O.C.) /5600 (O.C.) /5400 (O.C.) /5200 (O.C.) /4800 /4000 MT/s memory modules Support for Extreme Memory Profile (XMP) memory modules
Memory
Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum Memory	96 DDR4
General information
DVI	Not available
Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Memory Type	DDR5
Supported Storage	2 x M.2 connectors: M2A_CPU: Supports PCIe 4.0 x4/x2 SSDs M2P_SB: Supports PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, access the audio software for settings.
External Features
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x1 slot
Connector & Ports
LAN Port (s)	1 x Realtek® GbE LAN port
RAID	Not supported
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Physical Specification
USB	Rear Panel: 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Internal: 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
Warranty Information
Warranty	3 years

GIGABYTE B760M E DDR5 Micro ATX Motherboard in Bangladesh

The Gigabyte B760M E DDR5 Micro ATX Motherboard is engineered to support Intel's 12th and 13th Gen processors with the LGA 1700 socket. Powered by the Intel B760 chipset, this motherboard delivers robust performance with DDR5 memory support, ensuring faster speeds and better multitasking capabilities. It features PCIe 4.0 slots and dual M.2 slots, offering high-speed connectivity and efficient storage solutions for modern workloads.

With versatile connectivity options like USB 3.2 Gen 2, HDMI, and DisplayPort, the B760M E provides seamless integration for peripherals and displays. Its advanced cooling technologies and durable components ensure stability and long-lasting performance. Compact and efficient, the Micro ATX form factor makes it ideal for small PC builds, perfect for gaming, productivity, and everyday computing.
