Name: GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 20800.00 BDT
Availability: InStock

GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard

-0 %

GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard

Key Feature

Model: B760M GAMING DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 128GB 8000(OC)
Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Stock: In Stock
Brand: GIGABYTE
Model: GIGABYTE B760M GAMING DDR5

Based on 0 reviews. - Write a review

20,800৳

Ex Tax: 20,800৳

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

***It is requested to know about the stock and delivery of the product before ordering।*

Key Features
Form Factor	Micro-ATX
Connectivity
HDMI	1 x HDMI port
Basic Information
Supported CPU	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors Compatible with LGA1700 socket processors.
Chipset	Intel® B760 Express Chipset
Memory	2 x DDR5 DIMM sockets supporting up to 96GB of system memory Dual Channel Memory Architecture Support for DDR5 7800(O.C.) and lower frequency memory modules Support for Extreme Memory Profile (XMP) memory modules
Memory
Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum Memory	96GB
General information
DVI	Not available
Graphics	Integrated Graphics Processor: 1 x HDMI port 1 x DisplayPort 1 x D-Sub port
Memory Type	DDR5
Supported Storage	2 x M.2 connectors supporting PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, access the audio software for settings.
External Features
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x1 slot
Connector & Ports
LAN Port (s)	1 x Realtek® 2.5GbE LAN port
RAID	Support for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Physical Specification

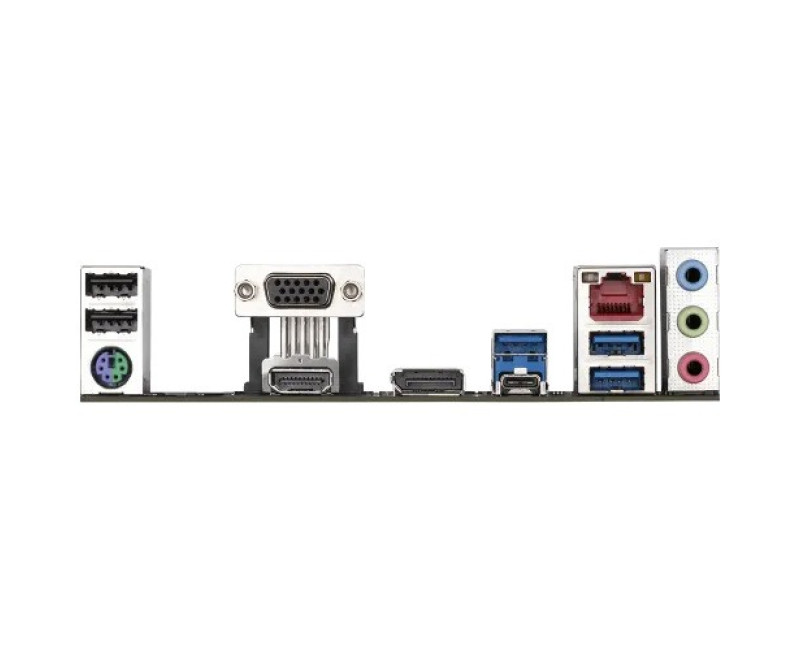

USB	Rear Panel: 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Internal: 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
Warranty Information
Warranty	3 years

GIGABYTE B760M GAMING DDR5 Micro ATX Motherboard in Bangladesh

The GIGABYTE B760M GAMING DDR5 Micro-ATX Motherboard is a high-performance and reliable platform for gamers and professionals alike. Built with the Intel B760 chipset and designed for 12th and 13th Gen Intel processors, it supports the LGA 1700 socket and cutting-edge DDR5 memory for unparalleled speed and efficiency. This motherboard ensures enhanced gaming experiences and seamless multitasking for modern computing.

Equipped with PCIe 4.0 slots and dual M.2 connectors, the motherboard offers high-speed connectivity and storage solutions. USB 3.2 Gen 2, HDMI, and DisplayPort ports ensure versatile peripheral connections and multi-display setups. Designed with advanced cooling solutions and durable components, the GIGABYTE B760M GAMING ensures stable performance even under heavy workloads. Its compact Micro-ATX form factor makes it an ideal choice for space-efficient yet powerful gaming and productivity PC builds.
