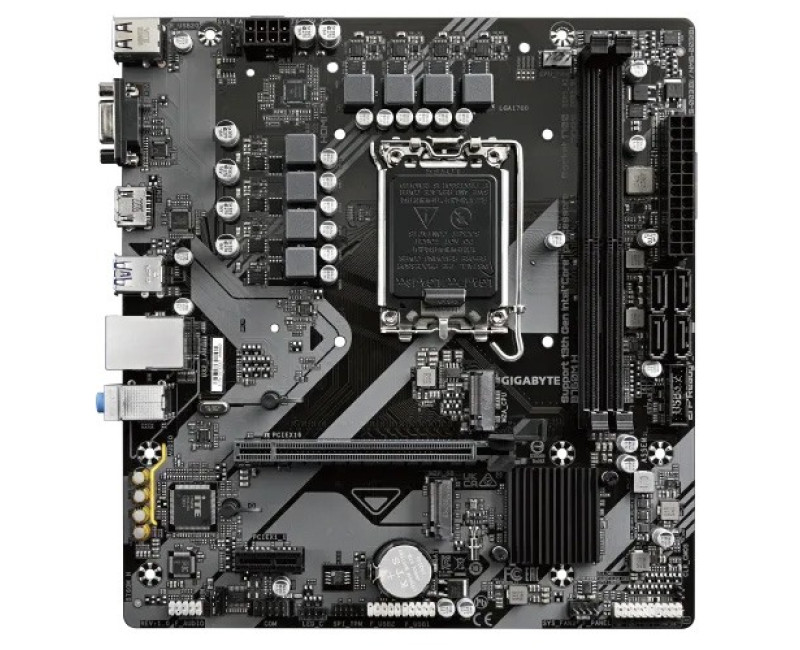

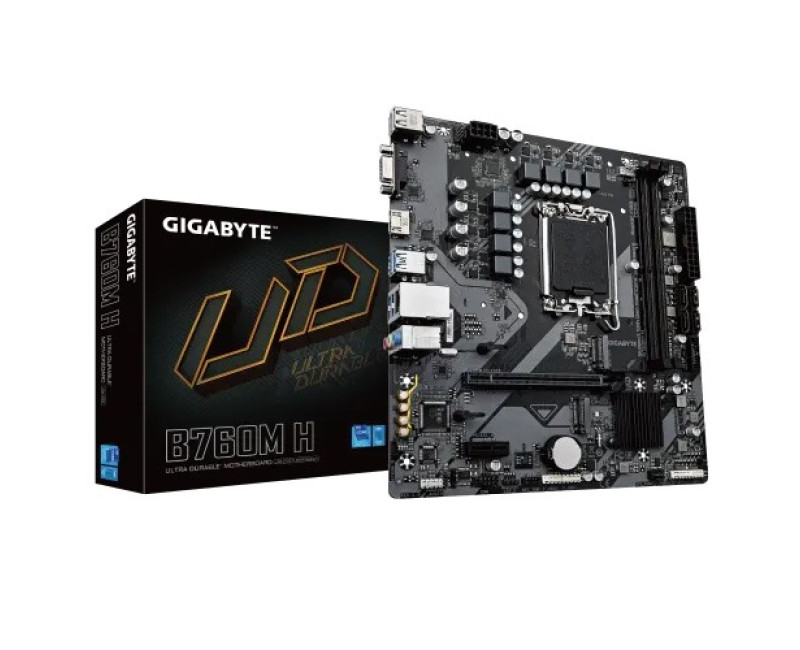

Name: GIGABYTE B760M H DDR5 Micro ATX Motherboard
Brand: GIGABYTE
Price: 15300.00 BDT
Availability: InStock

GIGABYTE B760M H DDR5 Micro ATX Motherboard

-10 %

GIGABYTE B760M H DDR5 Micro ATX Motherboard

Key Feature

Model: B760M H DDR5
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
Supported RAM: 2 x DDR5, Max 128GB 8000(O.C.)
Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Stock: In Stock
Brand: GIGABYTE
Model: GIGABYTE B760M H

Based on 0 reviews. - Write a review

15,300৳

17,050৳

Ex Tax: 15,300৳

Qty

Add to Cart

Buy Now Buy Now

Add to Wish List Compare this Product

***It is requested to know about the stock and delivery of the product before ordering।*

Key Features
Form Factor	Micro-ATX
Connectivity
HDMI	1 x HDMI port
Basic Information
Supported CPU	14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors Compatible with LGA1700 socket processors.
Chipset	Intel® B760 Express Chipset
Memory	2 x DDR5 DIMM sockets supporting up to 96GB of system memory Dual Channel Memory Architecture Support for DDR5 8000 (O.C.) /7800 (O.C.) /7600 (O.C.) /7400 (O.C.) /7200 (O.C.) /7000 (O.C.) /6800 (O.C.) /6600 (O.C.) /6400 (O.C.) /6200 (O.C.) /6000 (O.C.) /5800 (O.C.) /5600 (O.C.) /5400 (O.C.) /5200 (O.C.) /4800 /4000 MT/s memory modules Support for Extreme Memory Profile (XMP) memory modules
Memory
Slots	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Maximum Memory	96 DDR4
General information
DVI	Not available
Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Memory Type	DDR5
Supported Storage	2 x M.2 connectors: M2A_CPU: Supports PCIe 4.0 x4/x2 SSDs M2P_SB: Supports PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, access the audio software for settings.
External Features
Expansion Slots	1 x PCI Express x16 slot 1 x PCI Express x1 slot
Connector & Ports
LAN Port (s)	1 x Realtek® GbE LAN port
RAID	Not supported
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header
Physical Specification

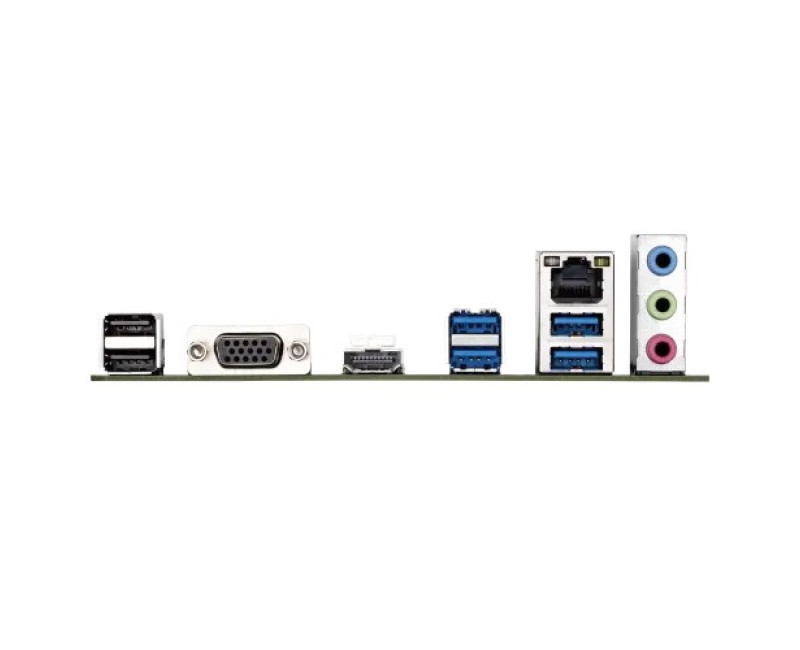

USB	Rear Panel: 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports Internal: 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports) 2 x USB 2.0/1.1 headers (support 4 USB 2.0/1.1 ports)
Warranty Information
Warranty	3 years

GIGABYTE B760M H DDR5 Micro ATX Motherboard in Bangladesh

The GIGABYTE B760M H DDR5 Micro ATX Motherboard is designed for Intel's 12th and 13th Gen processors with the LGA 1700 socket, offering robust performance and next-gen compatibility. Powered by the Intel B760 chipset, it supports DDR5 memory for ultra-fast speeds and improved multitasking capabilities. Equipped with PCIe 4.0 slots and dual M.2 slots, this motherboard ensures efficient connectivity and storage solutions for demanding applications.

The B760M H features versatile connectivity options, including USB 3.2 Gen 2, HDMI 2.1, and DisplayPort, enabling multi-display setups with high-resolution outputs. Its advanced cooling solutions and durable components provide reliable performance under heavy workloads. With a compact Micro ATX form factor, the GIGABYTE B760M H is ideal for space-saving PC builds, making it perfect for gaming, productivity, and everyday use.
