| Key Features | |
| Form Factor | Micro-ATX |
| Connectivity | |
| HDMI | 1 x HDMI port |
| Basic Information | |
| Supported CPU | 4th Generation Intel® Core™ i7/i5/i3 processors Intel® Pentium® processors Intel® Celeron® processors Compatible with LGA1150 socket processors. |
| Chipset | Intel® H81 Express Chipset |
| Memory | 2 x DDR3 DIMM sockets supporting up to 16GB of system memory Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Memory | |
| Slots | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot |
| Maximum Memory | 16GB |
| General information | |
| DVI | Not available |
| Graphics | Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 24 Hz / 2560x1600 @ 60 Hz Support for HDMI 1.4a version. |
| Memory Type | DDR3 |
| Supported Storage | 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors |
| Main Features | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| External Features | |
| Expansion Slots | 1 x PCI Express x16 slot 1 x PCI Express x1 slot |
| Connector & Ports | |
| LAN Port (s) | 1 x Realtek GbE LAN port |
| RAID | Not supported |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header |
| TPM (Trusted Platform Module ) | 1 x TPM header |
| Physical Specification | |

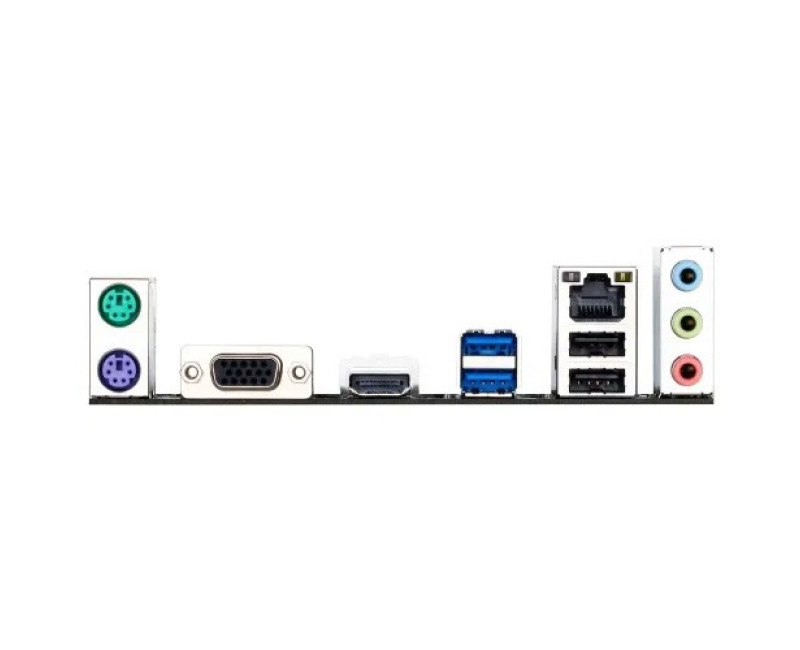

| USB | Rear Panel: 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports Internal: 2 x USB 2.0/1.1 headers (supporting 4 USB 2.0/1.1 ports) |
| Warranty Information | |
| Warranty | 3 years |

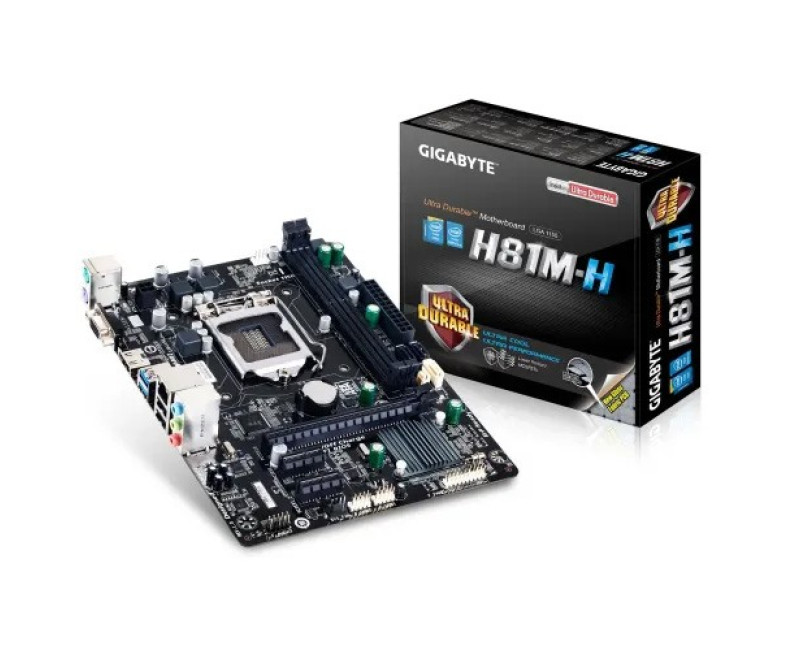

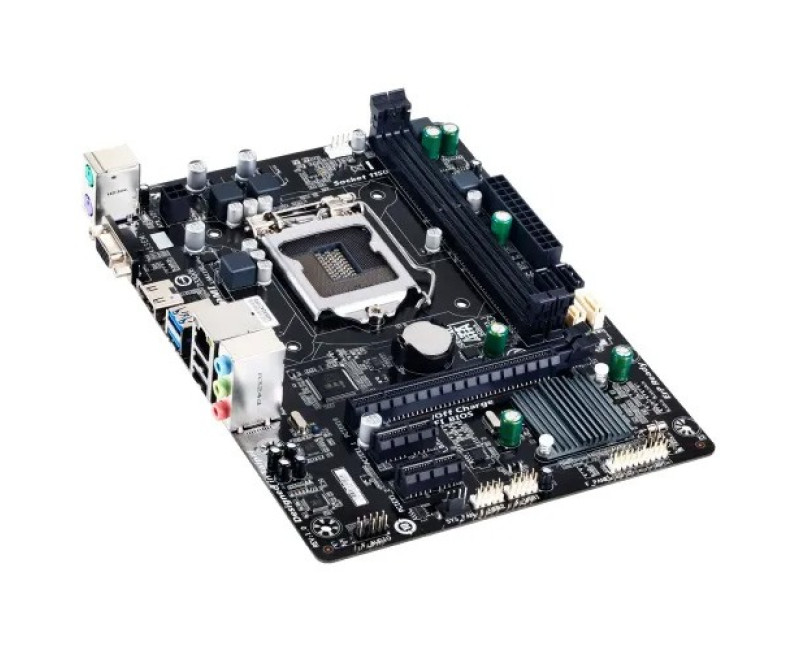

The GIGABYTE GA-H81M-H Motherboard is a powerful and feature-rich platform designed to support 4th Generation Intel Core processors. It incorporates GIGABYTE's Ultra Durable Technology, ensuring efficient performance and extended motherboard lifespan. The GIGABYTE GA-H81M-H Motherboard boasts a GIGABYTE UEFI BIOS for streamlined configuration, USB 3.0 ports with GIGABYTE 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge for convenient USB device charging even when the PC is off. High ESD Protection safeguards both USB and LAN ports, while the inclusion of HDMI and D-SUB ports on the rear panel offers versatile display connectivity options. The use of solid capacitors for CPU VRM design ensures stability and durability. The GIGABYTE GA-H81M-H Motherboard present a unique blend of cutting-edge features, including support for the latest Intel 8 Series platform, offering enhanced performance and power efficiency. With features like Humidity Protection, Power Failure Protection, and Electrostatic Protection, this motherboard is designed to withstand various challenges. The integration of GIGABYTE's LAN Optimizer and EasyTune technologies, along with Smart Fan 2 for optimal cooling, provides efficient management and customization options. The GIGABYTE App Center offers easy access to a range of GIGABYTE apps for seamless user experience, and the BIOS app allows BIOS updates from within Windows.
